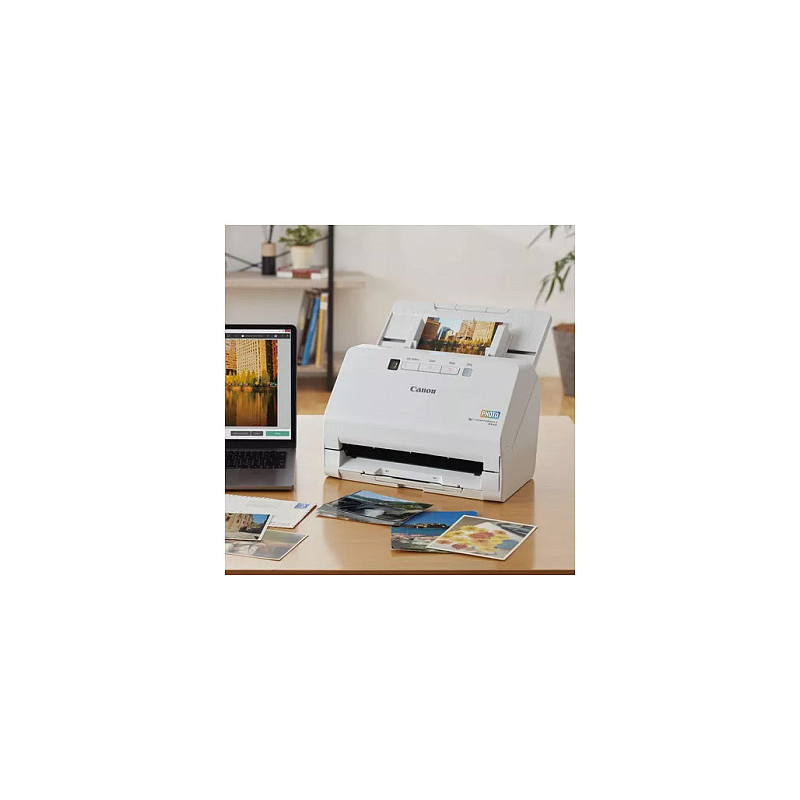

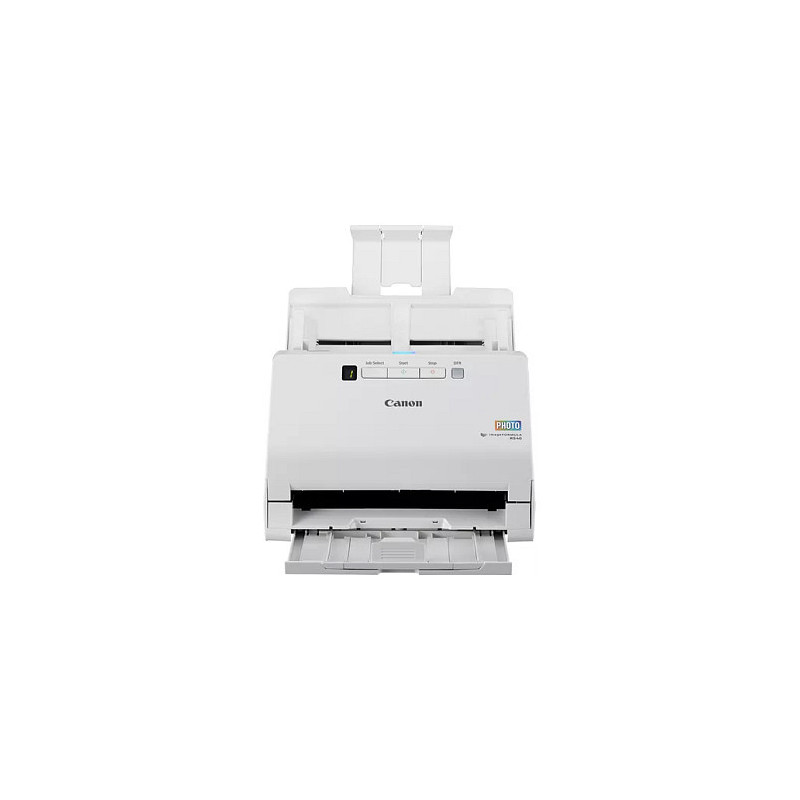

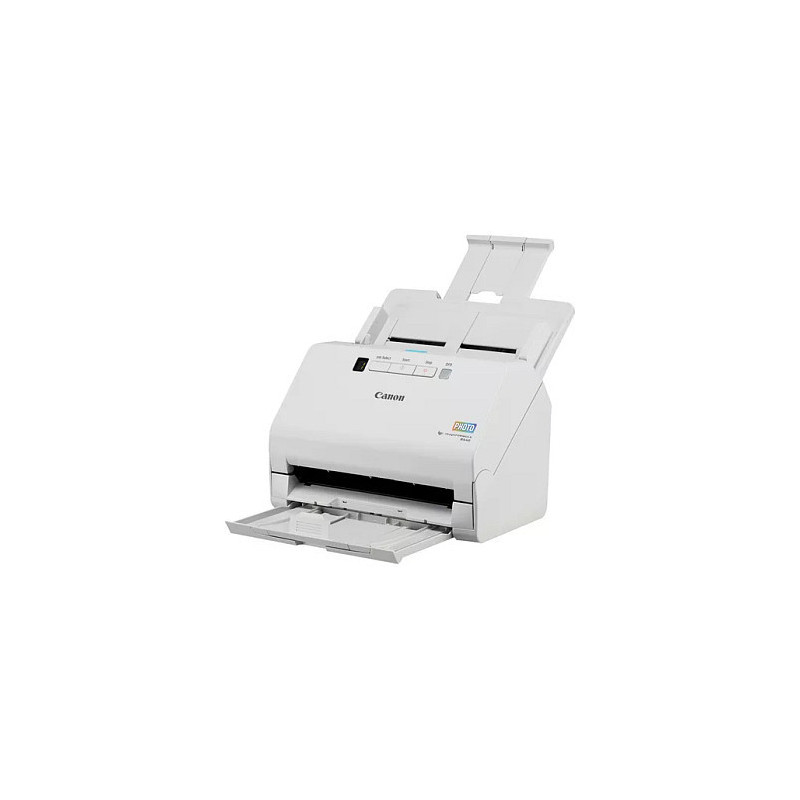

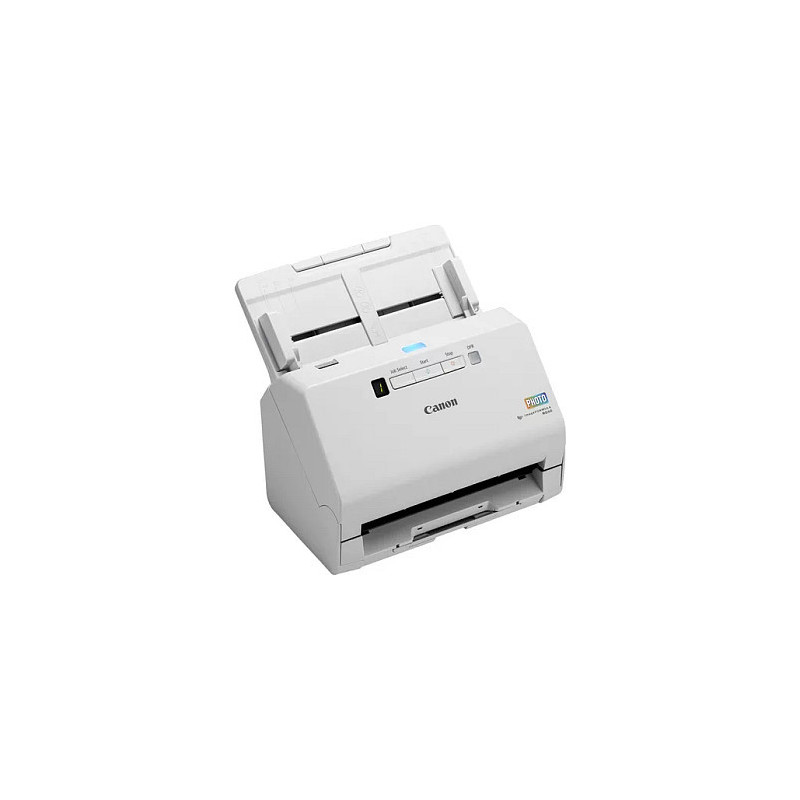

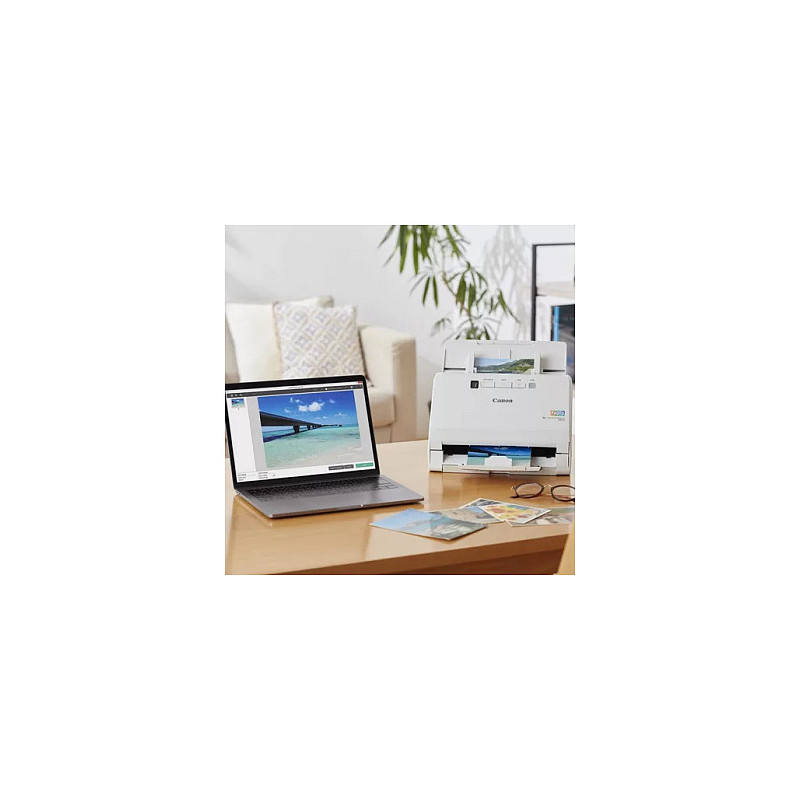

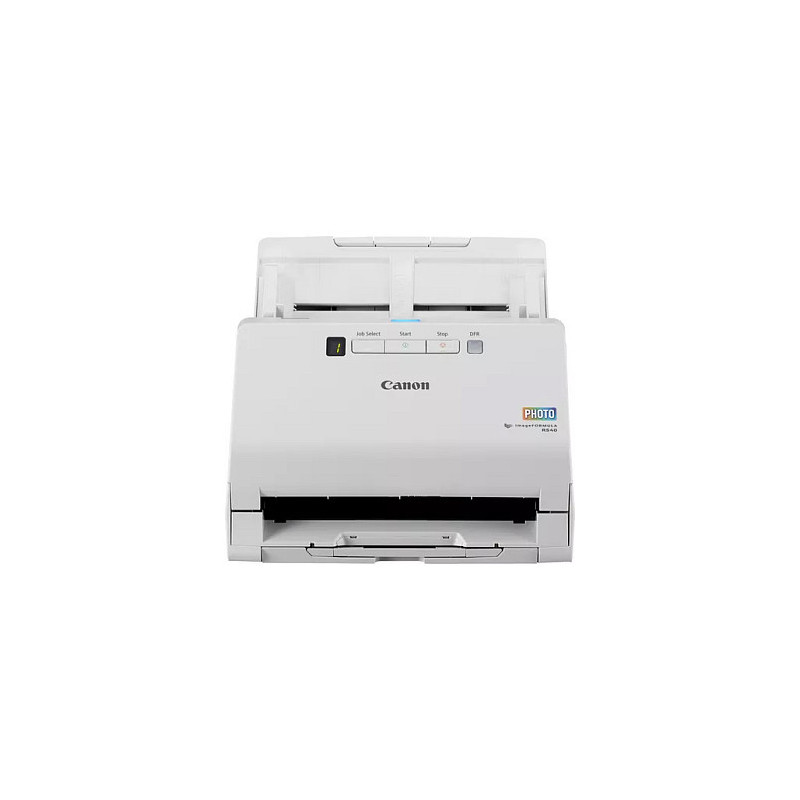

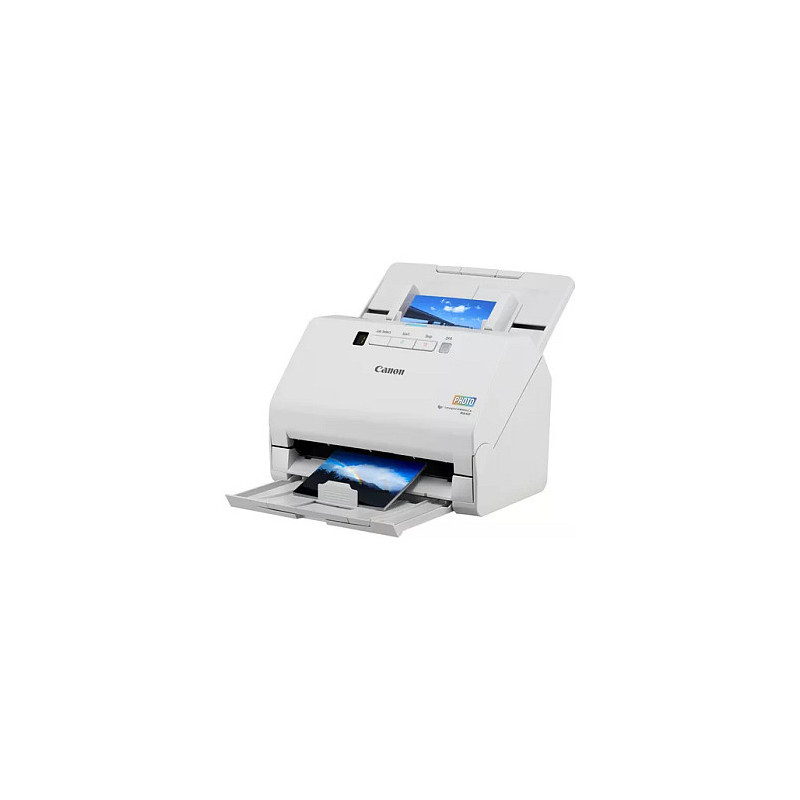

Canon RS40

Canon imageFORMULA RS40 Photo & Document Scanner. Optical scanning resolution: 600 x 600 DPI, ADF scan speed (b/w, A4): 40 ppm, ADF scan speed (colour, A4): 30 ppm. Scanner type: Sheet-fed scanner, Product colour: White. Sensor type: CMOS CIS, Light source: RGB LED, Scan drivers: TWAIN. Standard input capacity: 40 sheets, Auto document feeder (ADF) input capacity: 60 sheets. Media thickness (min): 0.04 mm, Card thickness (max): 1.4 mm, Maximum scan width: 21.6 cm

Re-live your precious memories and give your photographs a new lease of life. Enhance old and new photos with the RS40's enhanced image processing and share your 'Shoe Box' photos with family and friends in just a few clicks. With advanced image processing, you can brighten image colour, sharpen focus and correct colour distortion, to achieve optimum detail even where images have faded over time. This easy-to-use, compact device allows you to scan up to 40 photos in one go, with pre-set scanning options for added ease and consistency.

Scanning

Optical scanning resolution: 600 x 600 DPI
Feature: Colour scanning
Feature: Duplex scanning
ADF scan speed (b/w, A4): 40 ppm
ADF scan speed (colour, A4): 30 ppm
Black/white scanning colour modes: Grayscale, Monochrome

Design

Scanner type: Sheet-fed scanner
Product colour: White
Feature: Built-in display

Performance

Sensor type: CMOS CIS
Light source: RGB LED
Scan drivers: TWAIN
Feature: Ultrasonic double sheet detection

Input capacity

Standard input capacity: 40 sheets
Auto document feeder (ADF) input capacity: 60 sheets

Paper handling

Feature: Long-paper mode
Media thickness (min): 0.04 mm
Card thickness (max): 1.4 mm
Maximum scan width: 21.6 cm
Maximum scan length: 3 m

Ports & interfaces

Feature: USB port
USB version: 2.0

Power

Power supply type: AC
Power consumption (typical): 19 W
Power consumption (off): 0.1 W
AC input frequency: 50 - 60 Hz
Input voltage: 100 - 240 V
Power consumption (sleep): 1.4 W

Weight & dimensions

Width: 291 mm
Depth: 600 mm
Height: 382 mm
Weight: 3 kg
Folded width: 29.1 cm
Folded depth: 25 cm
Folded height: 24.5 cm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Cables included: AC, USB
Bundled software: TWAIN driver, CaptureOnTouch, Microsoft Windows 8.1 (32/64-bit)Microsoft Windows 10 (32/64-bit)Microsoft Windows 11macOS 10,15macOS 11macOS 12

System requirements

Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Mac operating systems supported: Yes
