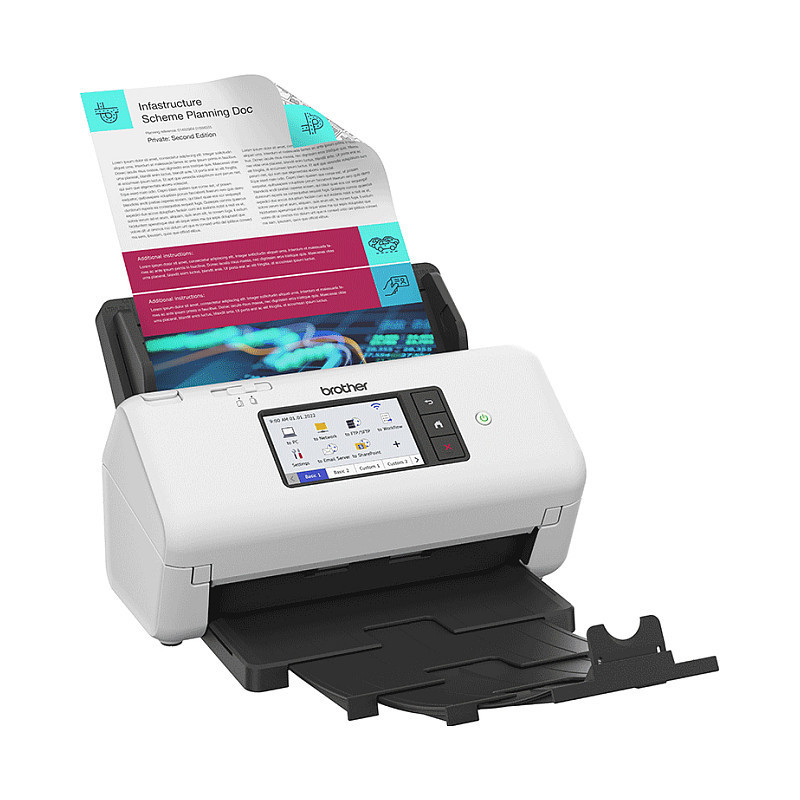

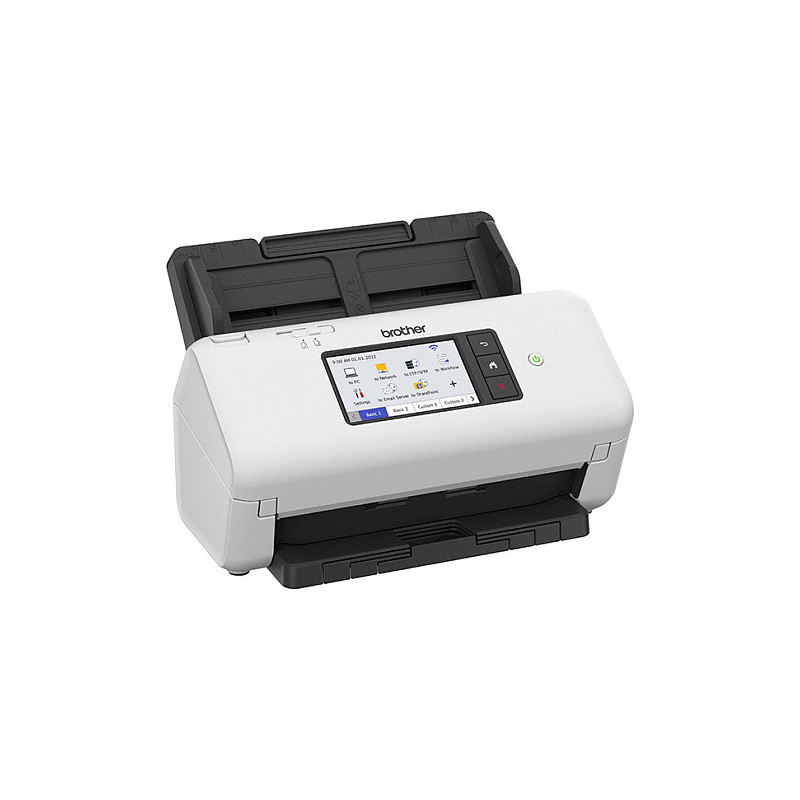

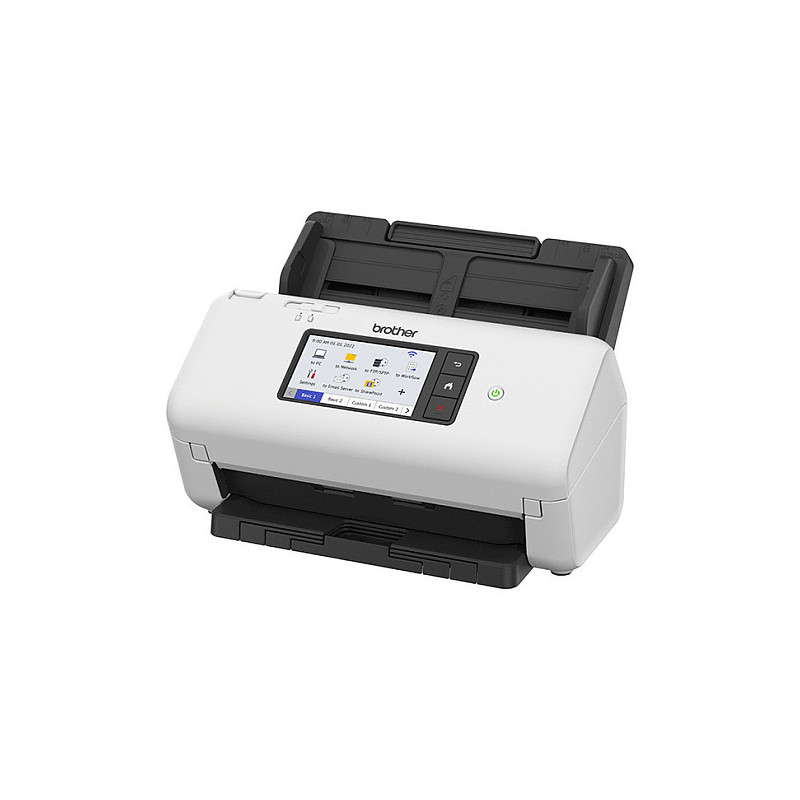

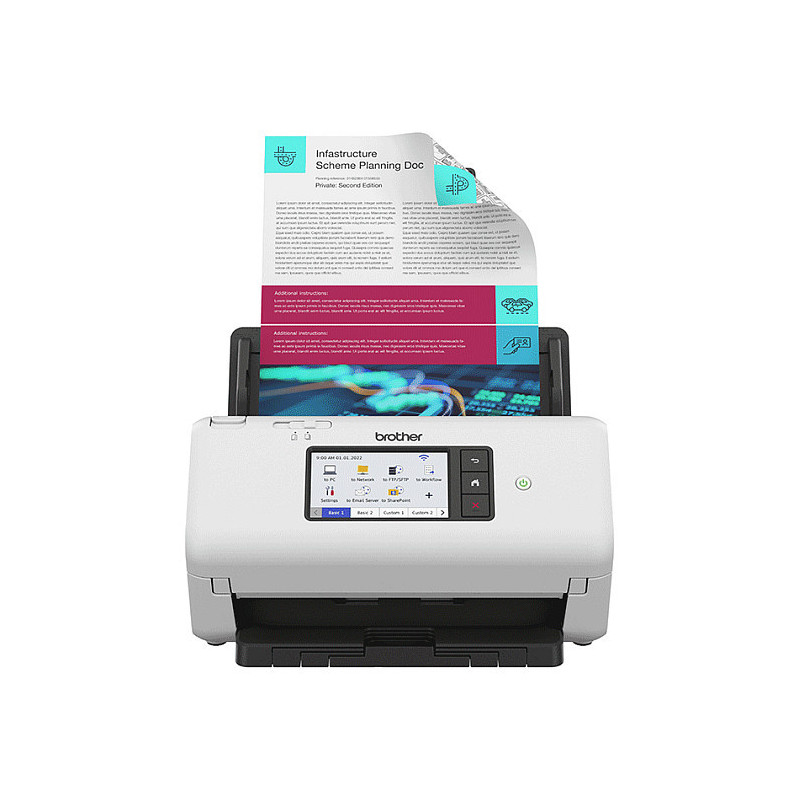

Brother ADS-4700W skaitytuvas

Brother ADS-4700W. Maximum scan size: 355.6 x 215.9 mm, Optical scanning resolution: 600 x 600 DPI, Enhanced scan resolution: 1200 x 1200 DPI. Scanner type: ADF + Sheet-fed scanner, Product colour: Black, White, Display: LCD. Sensor type: Dual CIS, Daily duty cycle (max): 6000 pages, Scan file formats: JPEG, PDF, TIFF. Auto document feeder (ADF) input capacity: 80 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper, Media thickness (min): 0.08 mm

Designed to enable businesses to simplify complex workflow or operational processes. Securely capture your documents to easily share and collaborate with colleagues whether they're at home or in the office. Large intuitive 10.9cm touchscreen with 56 configurable shortcuts Personalised multi-user experience Secure workgroup sharing Advanced image processing and batch scanning Features Auto Start scan, ultrasonic multifeed sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm Includes Brother ScanEssentials software Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE

Scanning

Maximum scan size: 355.6 x 215.9 mm
Optical scanning resolution: 600 x 600 DPI
Enhanced scan resolution: 1200 x 1200 DPI
Feature: Colour scanning
Feature: Duplex scanning
Input colour depth: 48 bit
Output colour depth: 24 bit
Output greyscale depth: 8 bit
Greyscale levels: 256
ADF scan speed (b/w, A4): 40 ppm
ADF scan speed (colour, A4): 40 ppm
Duplex ADF scan speed (b/w, A4): 80 ipm
Duplex ADF scan speed (colour, A4): 80 ipm

Design

Scanner type: ADF + Sheet-fed scanner
Product colour: Black, White
Display: LCD
Display diagonal: 10.9 cm (4.3")
Feature: Touchscreen
Feature: Colour display
Control type: Buttons
Feature: Built-in display

Performance

Sensor type: Dual CIS
Scan file formats: JPEG, PDF, TIFF
Daily duty cycle (max): 6000 pages
Maximum duty cycle: 120000 pages per month
Scan to: PC
Scan drivers: ISIS, TWAIN, WIA
Feature: Ultrasonic sensor
Scanning noise level: 59 dB
Internal memory: 512 MB

Input capacity

Auto document feeder (ADF) input capacity: 80 sheets

Paper handling

Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
Feature: Long-paper mode
Maximum ISO A-series paper size: A4
Feature: Legal
Media thickness (min): 0.08 mm
Card thickness (max): 1.32 mm
Paper tray media weight: 40 - 200 g/m²
Maximum scan width: 21.6 cm
Maximum scan length: 35.6 cm

Ports & interfaces

Feature: USB port
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g
Feature: Ethernet LAN
Security algorithms: WEP, WPA-PSK, WPA2-PSK, WPA3
Feature: IPv6 support

Power

Power supply type: AC
Power consumption (typical): 26 W
Power consumption (standby): 8.6 W
Power consumption (off): 0.1 W
Power consumption (PowerSave): 1.7 W
AC input frequency: 50 - 60 Hz
Feature: Sleep mode
Input voltage: 100-240 V
Power consumption (sleep): 1.7 W
Output voltage: 24 V
Output current: 1.9 A
Feature: Auto power off

Weight & dimensions

Width: 243 mm
Depth: 320 mm
Height: 391 mm
Weight: 3.23 kg

Packaging data

Quantity per pack: 1 pc(s)
Package width: 391 mm
Package depth: 243 mm
Package height: 320 mm
Package weight: 3.88 kg

System requirements

Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Other features

Spare part retention: 5 year(s)

Technical details

Pallet type: 800 x 1200 mm

Logistics data

Products per pallet: 40 pc(s)
Country of origin: China
Master (outer) cases per pallet: 40 pc(s)
Layers per pallet: 5 pc(s)
Pallet gross weight: 170.4 kg
Pallet gross height: 17.5 cm
Master (outer) cases per pallet layer: 8 pc(s)
Harmonized System (HS) code: 84716070
