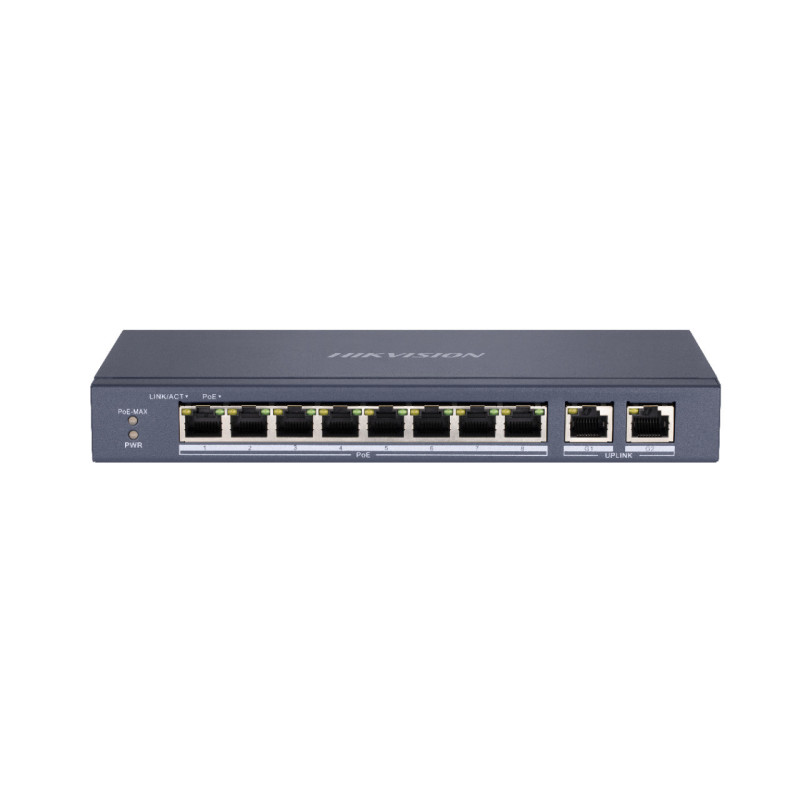

Hikvision 10-port 8 PoE port switch DS-3E0310P-E/M
Product reference: 26-6941264044413
  • 8 × 10/100Mbps PoE ports, 2 × gigabit RJ45 ports
  • IEEE 802.3at/af standards for PoE accessories (Max. 60 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standards.
  • 6 KV discharge protection
  • Up to 300 years of transmission
  • Metal housing
  • No fan required
  • In stock
Hikvision 10-port 8 PoE port switch DS-3E0310P-E/M

Hikvision 10-port 8 PoE port switch DS-3E0310P-E/M

Product reference: 26-6941264044413
  • 8 × 10/100Mbps PoE ports, 2 × gigabit RJ45 ports
  • IEEE 802.3at/af standards for PoE accessories (Max. 60 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standards.
  • 6 KV discharge protection
  • Up to 300 years of transmission
  • Metal housing
  • No fan required
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
5919 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Network settings
  • Ports 8 × 10/100Mbps PoE ports, and 2 × gigabit RJ45 ports
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Working mode Standard mode (default), Extend mode
  • Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
  • Transmission mode Store-and-forward switching
  • High priority ports NA
  • MAC address table 16 K
  • Switching capacity 5.6 Gbps
  • Packet forwarding speed 4.1664 Mpps
  • Internal cache memory 4 Mbit
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector

    End span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE port Ports 1 to 8
  • Max PoE port power 30W
  • PoE available power 60W
  • Call function
  • Long range mode Ports 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps.
  • Home
  • Size 217.6 mm × 103.35 mm × 27.8 mm (8.57" × 4.07" × 1.09")
  • Frame Metal material, fan-free design
  • Weight with packaging 1.20 kg (2.65 lb)
  • Weight without packaging 0.56 kg (1.23 lb)
  • Working conditions humidity -10 °C to 40 °C (14 °F to 104 °F)
  • Working conditions humidity 5% to 95% (no condensation)
  • Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage conditions humidity 5% to 95% (no condensation)
  • Power consumption in sleep mode < 5W
  • Power supply 48VDC, 1.35A
  • Max. power consumption 65W
  • Approvals
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); IC (ICES-003: Issue 6, 2016)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Manufacturer codeSWITCHDS3E0310PEM
ManufacturerHikvision
Weight0.56 kg
