ALFA NETWORK atsarginis pramoninis gigabito PoE injektorius su apsauga nuo viršįtampių

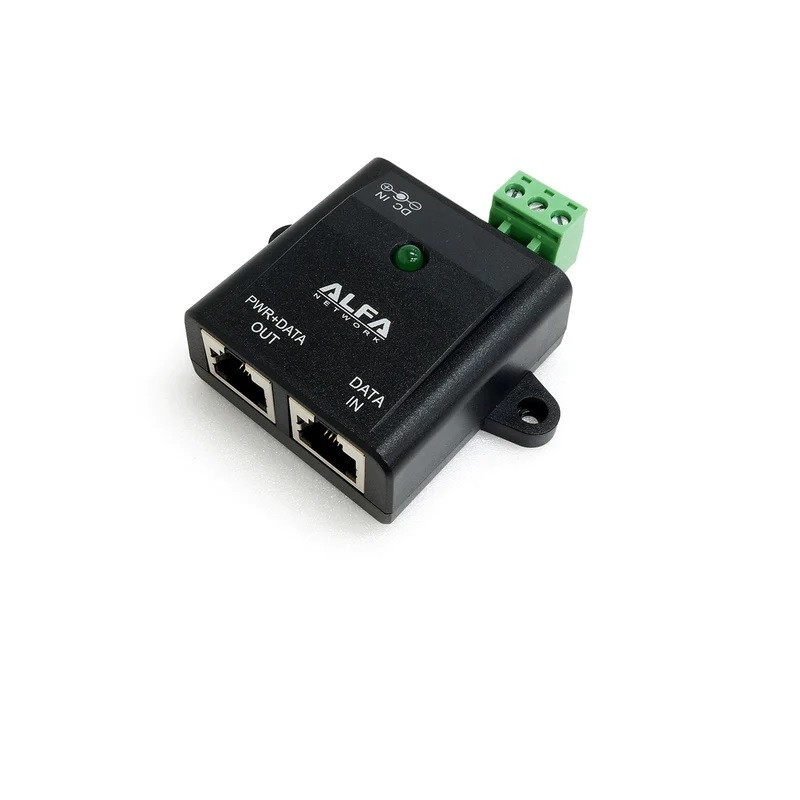

The APOE03GS is the Single-Port Gigabit ( 10/100/1000 Base-T) redundant PoE Midspan/Injector with Surge Protection and Reser Function that provides DC power for PoE equipped Network Appliance device. It is compatible with devices that support the IEEE 802.3af/at standard PoE power feed using Mode B (Pins 4/5 and 7/8).

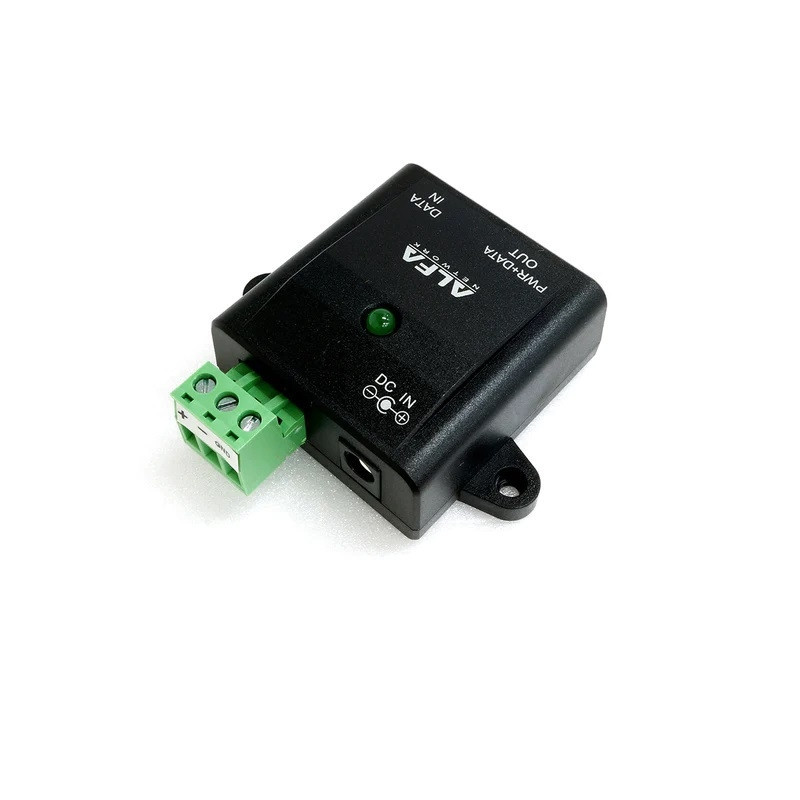

The APOE03GS features terminal block for Power redundancy, the power redundancy ensures that vital network capabilities are always available when needed, and also makes life easier for any IT Administrator who just doesn't want to have his sleep, or his weekend interrupted by an untimely service call caused by a finicky power supply.

Function

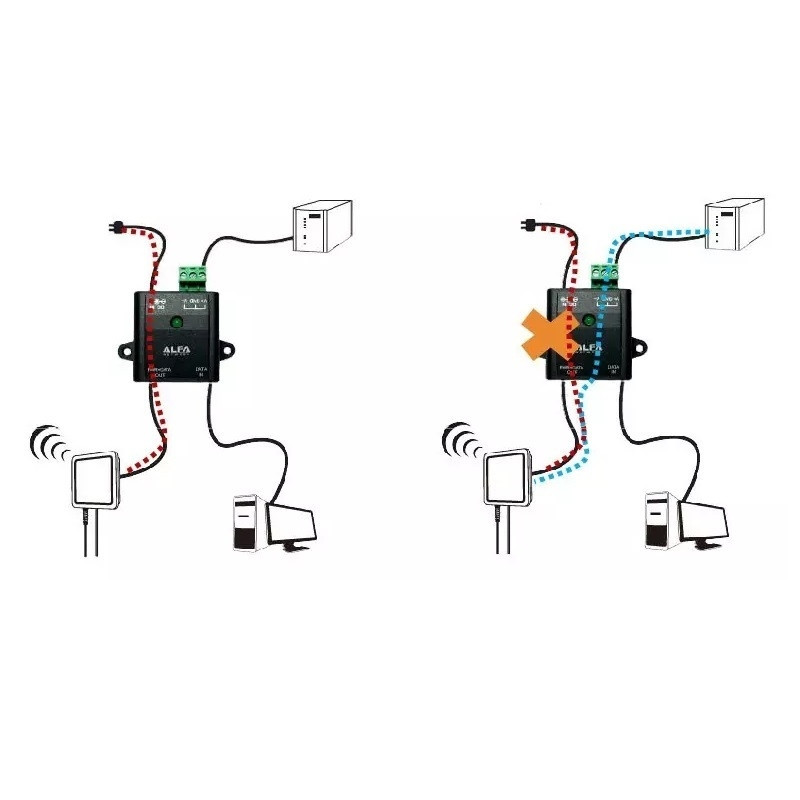

Transform DC through RJ-45 cable PIN# 4,5,7,8, into remote devices such as Wireless AP, IP Phone, IP surveillance Camera, etc. With the terminal block connector can be connected to the UPS allowing redundancy in the power source.

PIN Define:
