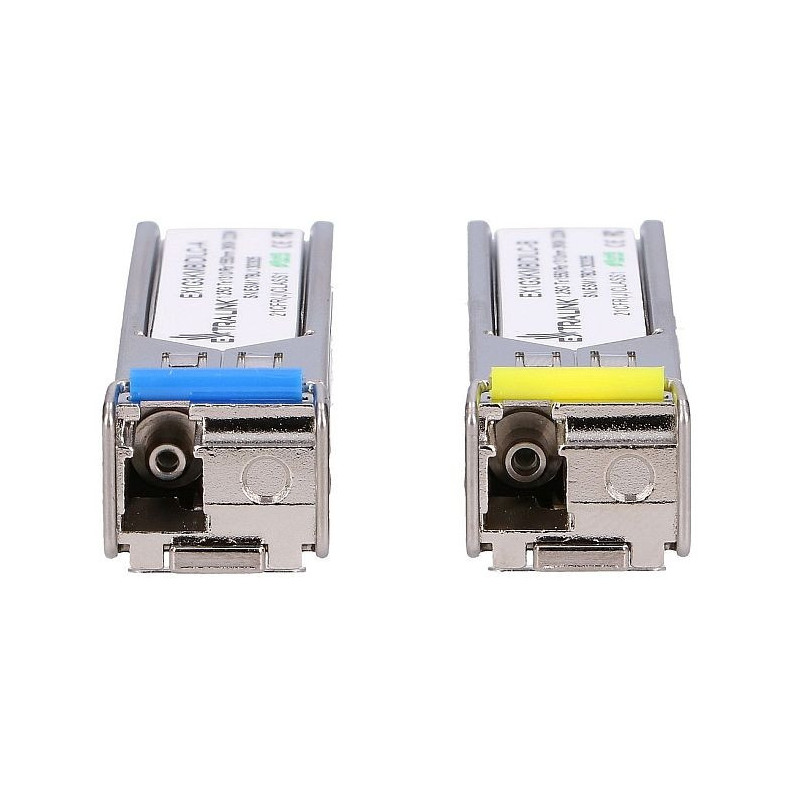

EXTRALINK SFP 1.25G WDM 1310 / 1550NM SM 3KM LC - PAIR

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

• Dual data-rate of 1.25Gbps/1.063Gbps operation


• 1310nm FP laser and PIN photodetector for 3km transmission


• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle


• Digital Diagnostic Monitoring: Internal Calibration or External Calibration


• Compatible with SONET OC-24-LR-1


• Compatible with RoHS


• +3.3V single power supply

Applications

• Gigabit Ethernet


• Fiber Channel


• Switch to Switch interface


• Switched backplane applications


• Router/Server interface


• Other optical transmission systems
