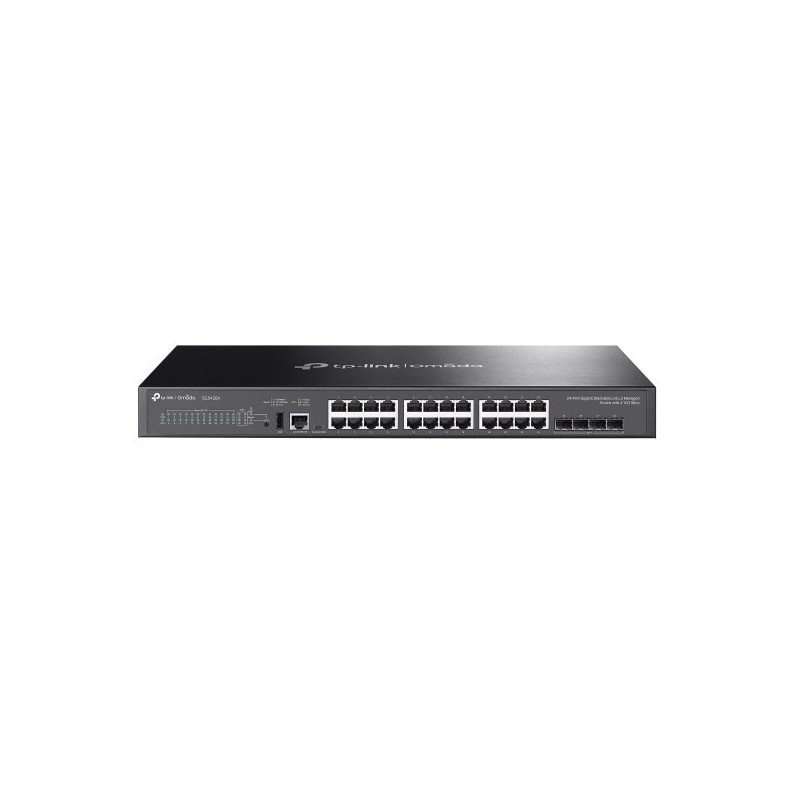

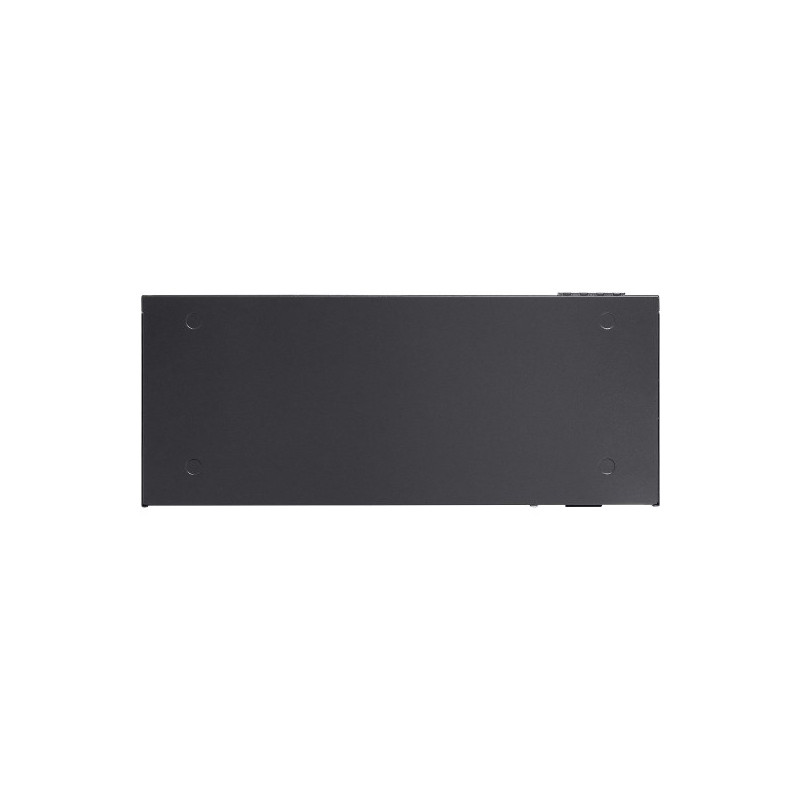

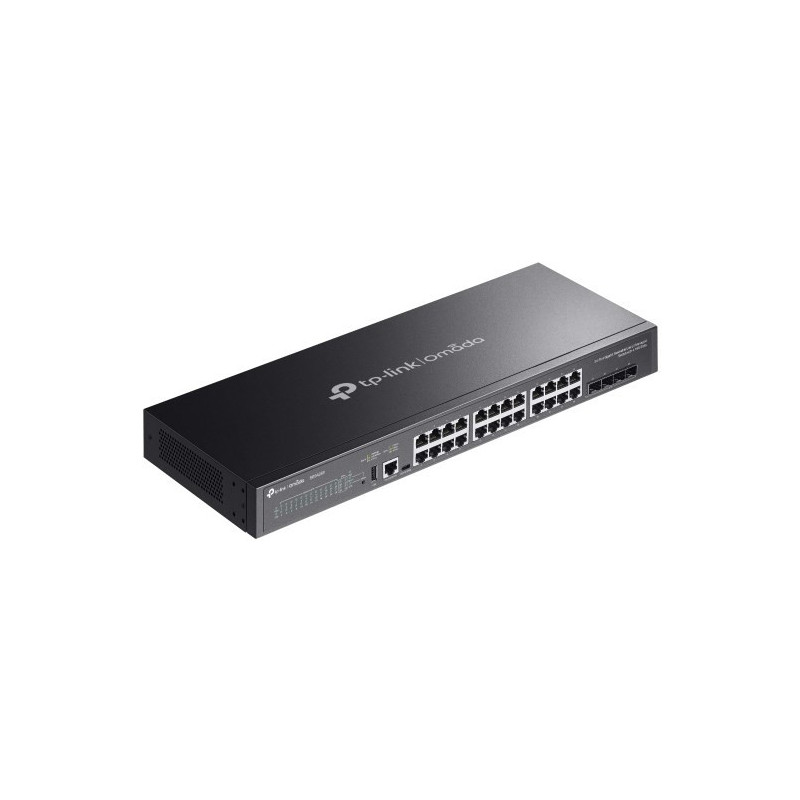

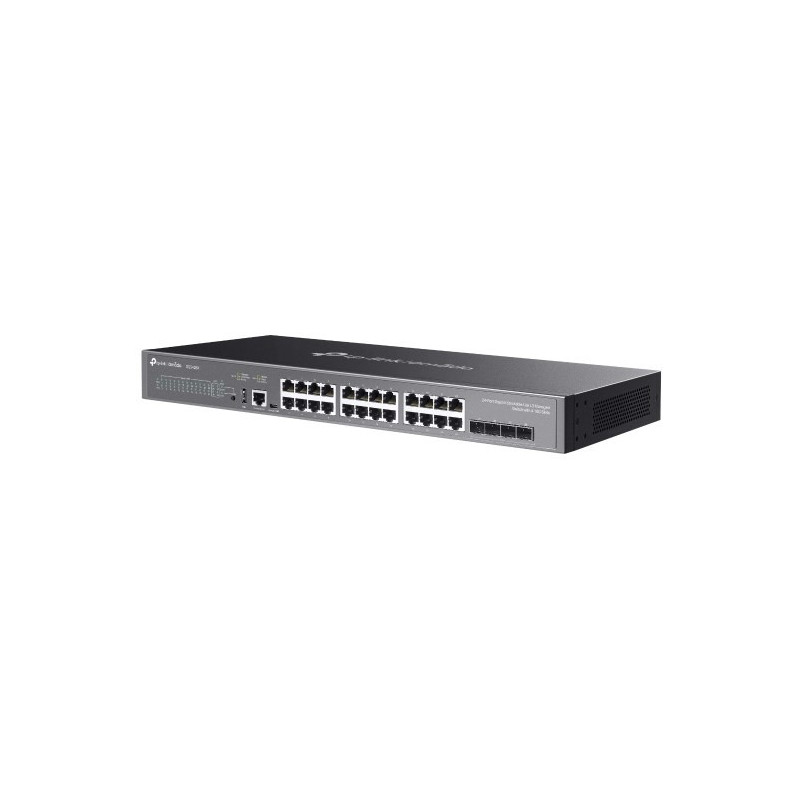

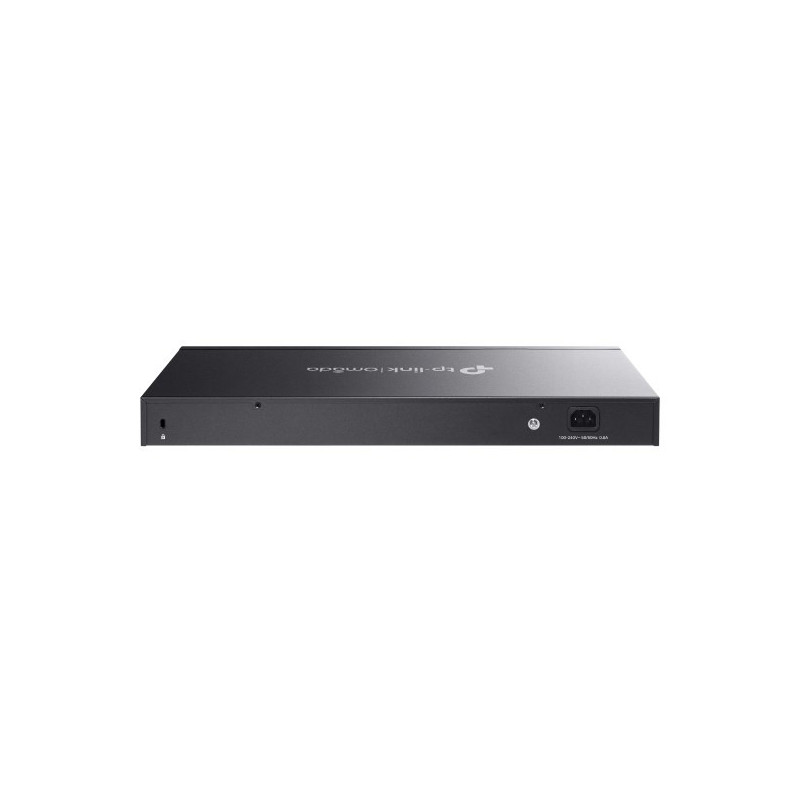

TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10 / 100 / 1000) Black
Product reference:
6-SG5428X
TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10 / 100 / 1000) Black
Product reference:
6-SG5428X
TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
6 - 11
business days
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 19.6 W |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power supply included | Yes |
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
| Security algorithms | SNMPv3, SNMPv2, SNMP |
| MAC address filtering | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP server, DHCP relay |
| Password protection | Yes |
| IP-MAC-Port binding | Yes |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Heat dissipation | 66.87 BTU/h |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Cloud-managed | Yes |
| Depth | 180 mm |
| Width | 440 mm |
| Height | 44 mm |
| Networking standards | IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at |
| Virtual LAN features | Voice VLAN, Private VLAN, Protocol-based VLAN, MAC address-based VLAN |
| VLAN support | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Built-in processor | Yes |
| Internal memory | 2000 MB |
| Processor manufacturer | ARM |
| Firmware upgradeable | Yes |
| Processor frequency | 1200 MHz |
| Flash memory | 512 MB |
| Physical stacking (units) | 4 |
| Mean time between failures (MTBF) | 519.543 h |
| Telnet | Yes |
| Memory type | DRAM |
| Fanless | Yes |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC) |
| USB 2.0 ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB Type-C ports quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Bandwidth | 64 Gbit/s |
| Management level | 4 |
| Switching capacity | 128 Gbit/s |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Forwarding rate | 95.23 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Power over Ethernet (PoE) | No |
| Multicast support | Yes |
