MERCUSYS 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

• 4G+ network - Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.

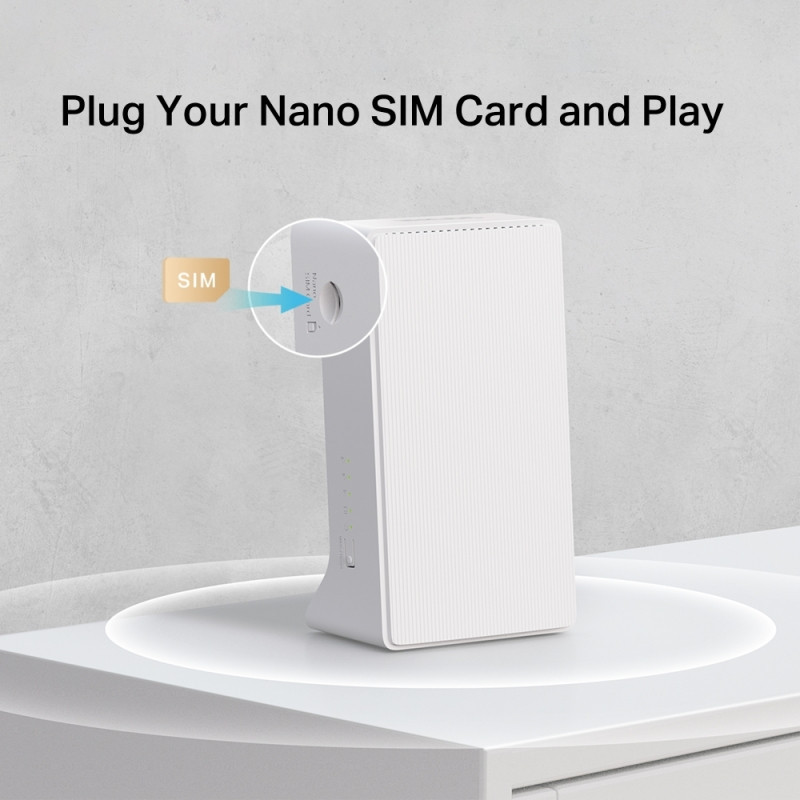

• Plug a SIM card and play - No configurations needed, compatibility of SIM cards are assured by years of field tests.


• Dual Band 1200 Mbps WiFi - Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.


• Simultaneous Connection - Enjoy and share internet access with up to 64 Wi-Fi devices.


• Wi-Fi router mode - Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

Wireless

Wireless Standards: IEEE 802.11ac/a/b/g/n

Frequency: 5 GHz, 2.4 GHz

WiFi Speeds:

867 Mbps at 5 GHz

300 Mbps at 2.4 GHz

Reception Sensitivity:

11g 6Mbps: -95dBm

11g 54Mbps: -77dBm

11n HT20 MCS7: -74dBm

11n HT40 MCS7: -71dBm

11a 6Mbps: -92dBm

11a 54Mbps: -75dBm

11ac VHT20 MCS8: -70dBm

11ac VHT40 MCS9: -65dBm

11ac VHT80 MCS9: -61dBm

Transmission Power:

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE

Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless, Statistics

Hardware

Dimensions: 95×61.05×165.97 mm

Interfaces:

1× Gigabit LAN/WAN Port

1× Gigabit LAN Port

1× Nano SIM Card Slot

Button: WPS/Reset Button

Network Type:

EU:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40 (2600/2300 MHz)

HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software

DHCP: Server

Others

Package Contents:

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB230-4G)

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Environment:

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing
