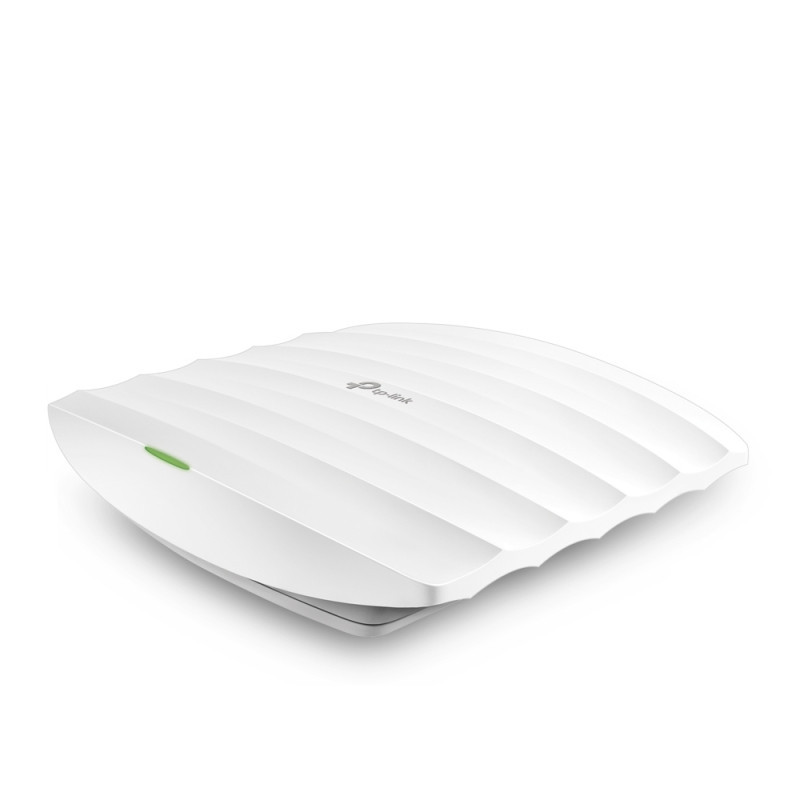

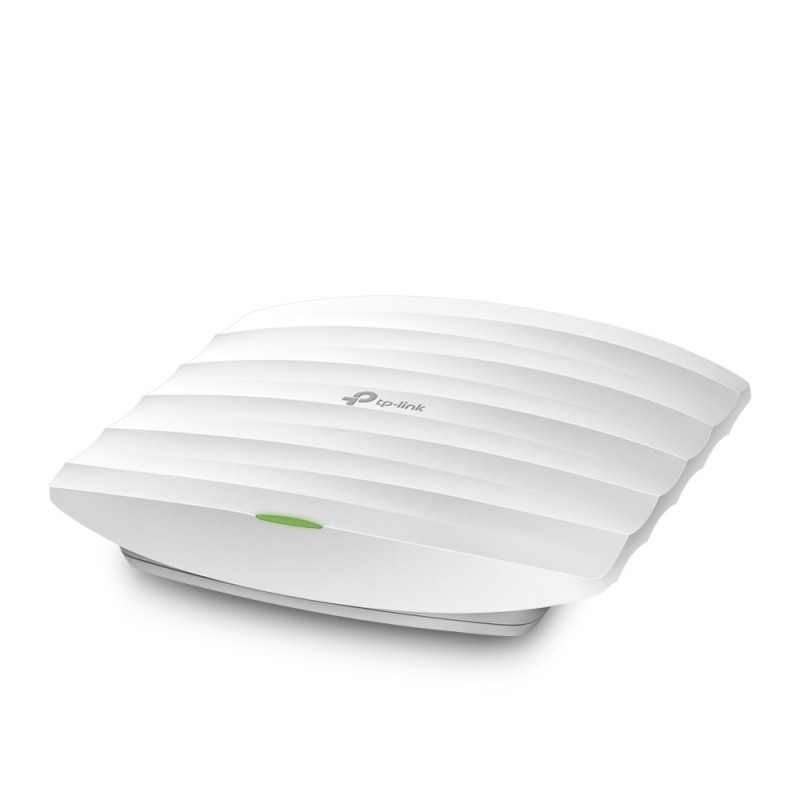

AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds


• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations


• Free cloud centralized management and Omada app for ultra convenience and easy management


• Support Power over Ethernet (802.3at) for convenient and affordable installation


• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.


• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections


• Load balance ensures large numbers of users have smooth network experiences in high density business networks


• Supports management VLAN for an enhanced network management

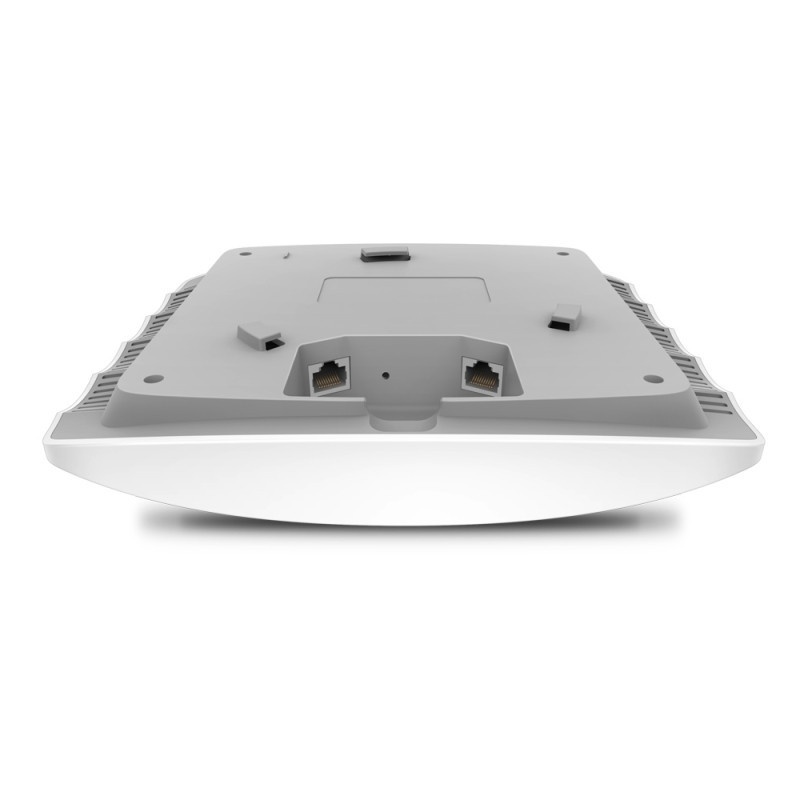

HARDWARE FEATURESInterface: Gigabit Ethernet (RJ-45) Port *2 (Support IEEE802.3af PoE and Passive PoE )

Physical Security Lock: Yes

Button: Reset

Power Supply:

802.3af/A PoE

48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 12.3 W

Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)

Antenna Type (Internal Omni):

2.4GHz: 3* 3.5dBi

5GHz: 3*4dBi

Mounting: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURESWireless Standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4GHz and 5GHz

Signal Rate:

5GHz:Up to 1300Mbps

2.4GHz:Up to 450Mbps

Wireless Functions:

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

Seamless Roaming

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security:

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

Transmission Power:

CE：

≤20dBm(2.4GHz)

≤23dBm(5GHz)

FCC:

≤24dBm(2.4GHz)

≤24dBm(5GHz)

MANAGEMENTOmada App: Yes

Centralized Management:

Omada Software Controller

OC200

Cloud Access: Yes (Through Omada Software Controller or OC200)

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: Yes

System Logging Local/Remote Syslog: Local/Remote Syslog

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

OTHERSCertification: CE, FCC, RoHS

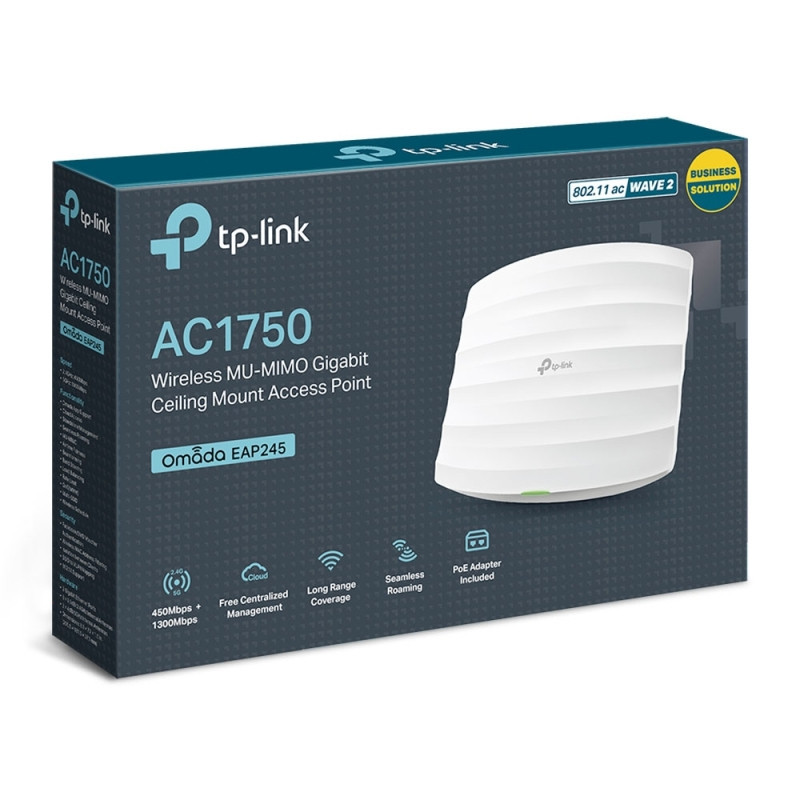

Package Contents:

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245

Gigabit Passive PoE Adapter

Power Cord

Mounting Kits

Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
